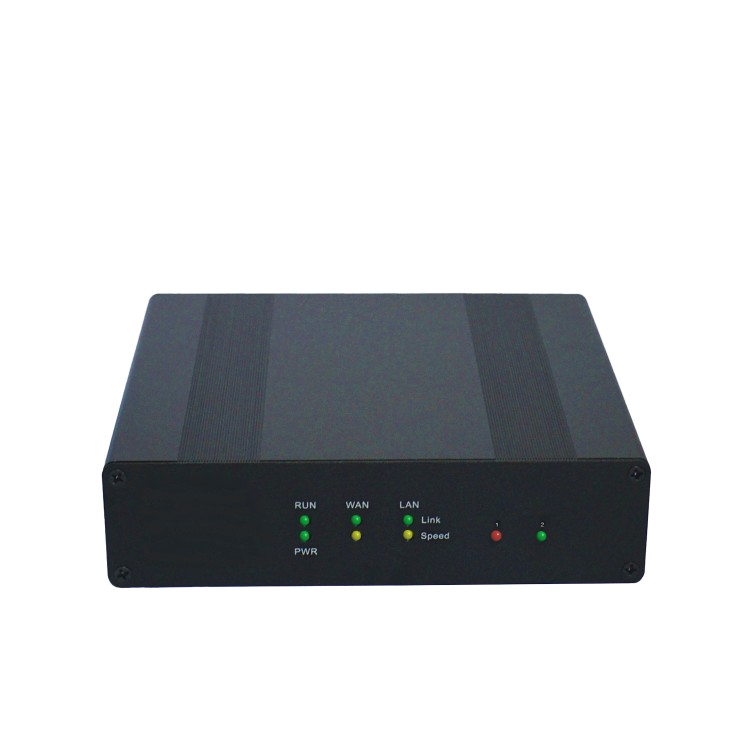

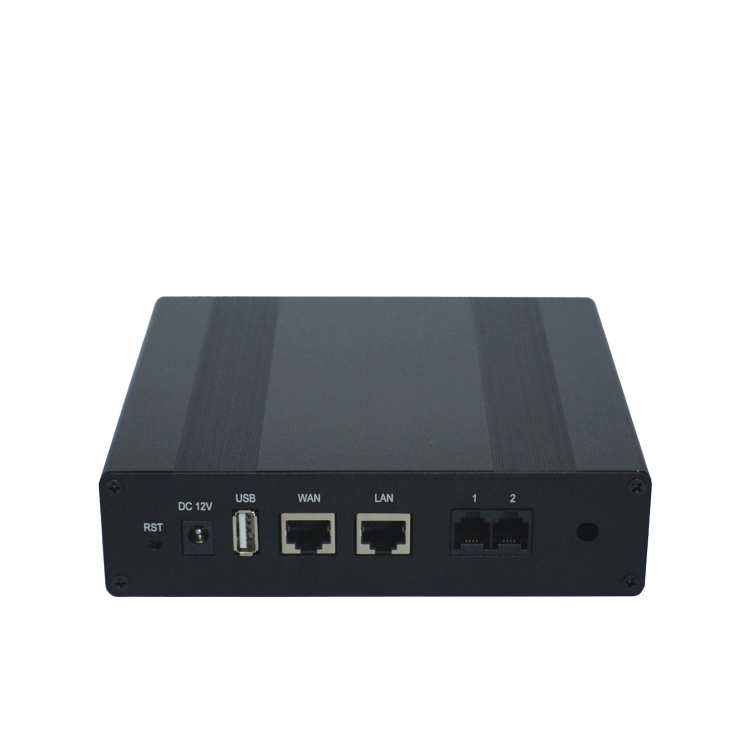

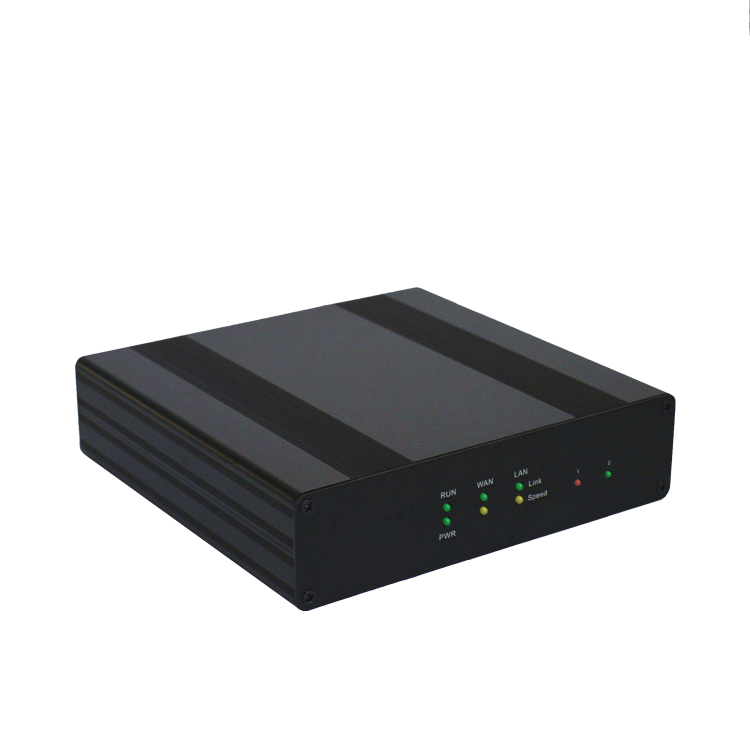

Max 20 is an embedded IP PBX specially designed to bring enterprise-grade Unified Communications and Security protection features to small business in a easy-manage fashion.
It offers up 20 users which offers the flexibility of integration of PSTN lines, GSM Channels and VoIP trunks, and supports a maximum of 10 concurrent calls.
It offers a solution for converged voice, video, data, fax, and mobility applications out of the box without any extra license fees or recurring costs.
Features:
Support 20 users, 10 concurrent calls.
Integrated up to 2 PSTN trunk FXO ports, or 2 analog telephone FXS ports, or 1 GSM port.
Customizable combination of FXO, FXS and GSM modules.
Deliver enterprise-grade communication features and functionality to SMBs.
Perfect interoperability with a wide range IP Phone.
Strongest-possible security protection using SRTP, TLS, and HTTPS.
Energy Saving, embedded system with low power consumption for your green office.
Flexible dial plan and Manipulation Rules.
Easy to manage via web-based configuration interface.
Physical properties:
Ethernet Interface : 2 RJ45（10/100BASE-TX）
USB Interface : 1 USB2.0
Power Supply : AC100-240V, 50/60Hz, DC 12V/1.0A
Power consumption : 9W
Temperature(operation) : 0~50 ℃
Temperature(storage) : -20~80 ℃
Operation Humidity : 10%-90% No Condensation
Dimension (WxDxH) : 159x163x40mm

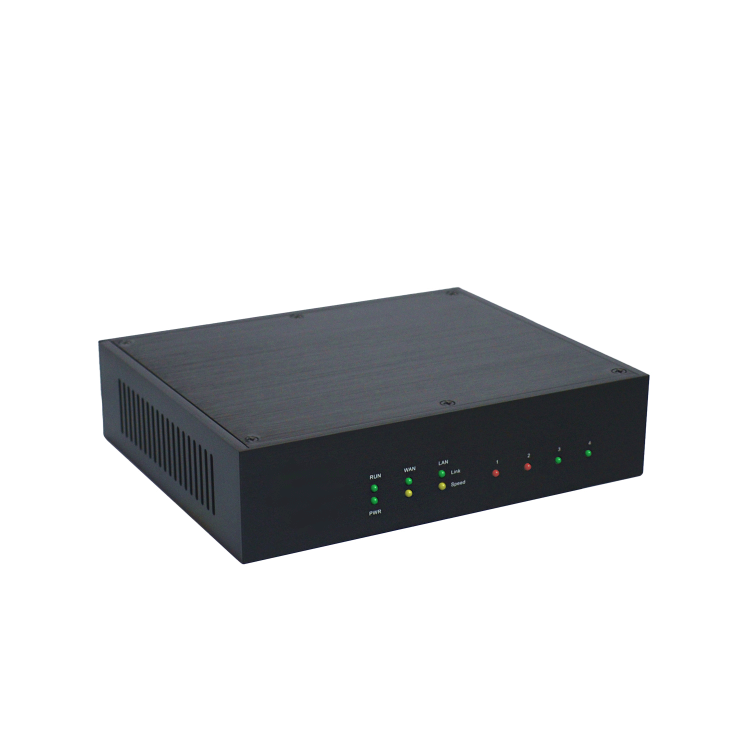

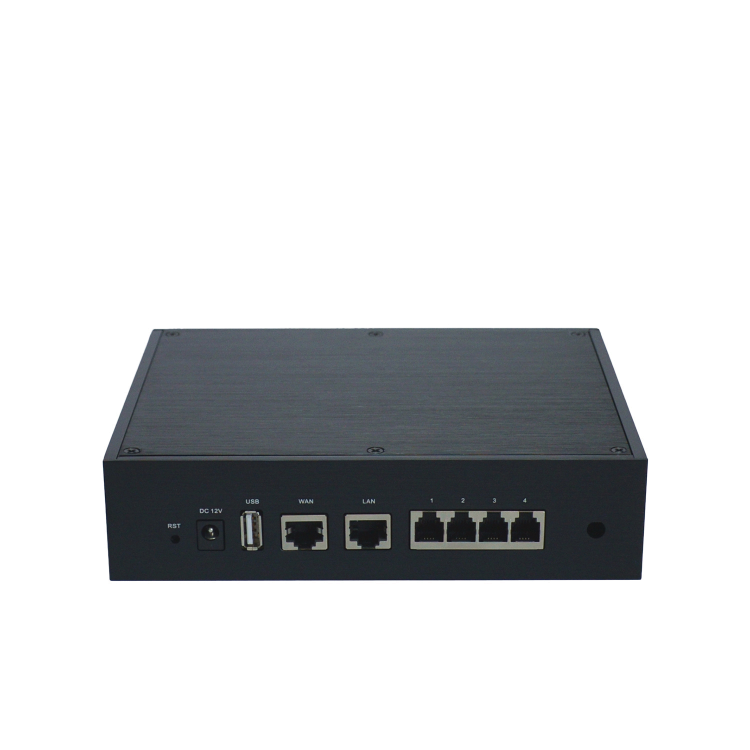

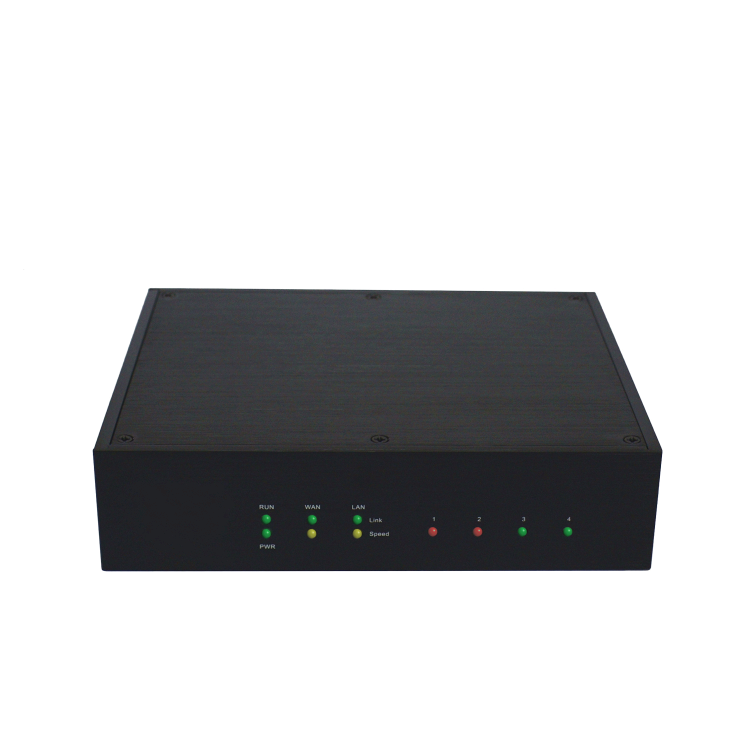

Max 50 is an embedded IP PBX specially designed to bring enterprise-grade Unified Communications and Security protection features to small business in a easy-manage fashion.
It offers up 50 users which offers the flexibility of integration of PSTN lines, GSM Channels and VoIP trunks, and supports a maximum of 15 concurrent calls.
It offers a solution for converged voice, video, data, fax, and mobility applications out of the box without any extra license fees or recurring costs.
Features:
Support 50 users, 15 concurrent calls.
Integrated up to 4 PSTN trunk FXO ports, or 4 analog telephone FXS ports, or 2 GSM ports.
Customizable combination of FXO, FXS and GSM modules.
Deliver enterprise-grade communication features and functionality to SMBs.
Perfect interoperability with a wide range IP Phone.
Strongest-possible security protection using SRTP, TLS, and HTTPS.
Energy Saving, embedded system with low power consumption for your green office.
Flexible dial plan and Manipulation Rules.
Easy to manage via web-based configuration interface.
Physical properties:
Ethernet Interface : 2 RJ45（10/100BASE-TX）
Power Supply : AC100-240V, 50/60Hz, DC 12V/1.0A
Power consumption : 8W
Temperature (operation) : 0~50 ℃
Temperature (storage) : -20~80 ℃
Operation Humidity : 10%-90% No Condensation
Dimension (WxDxH) : 185x152x45mm

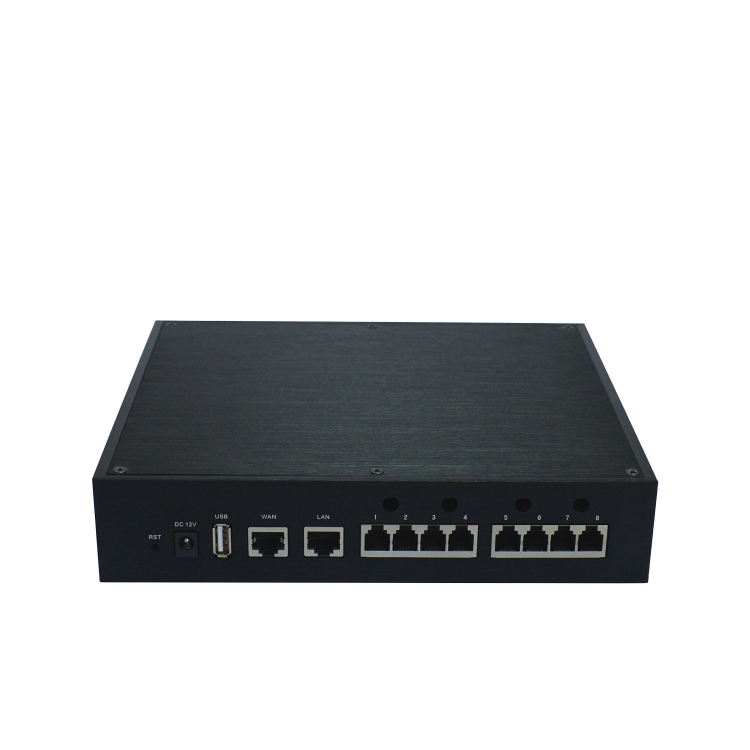

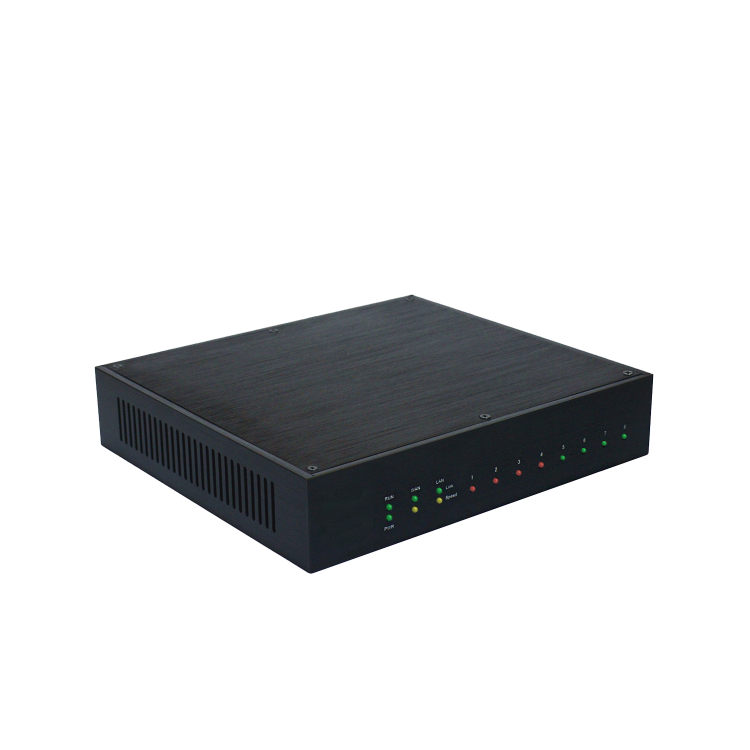

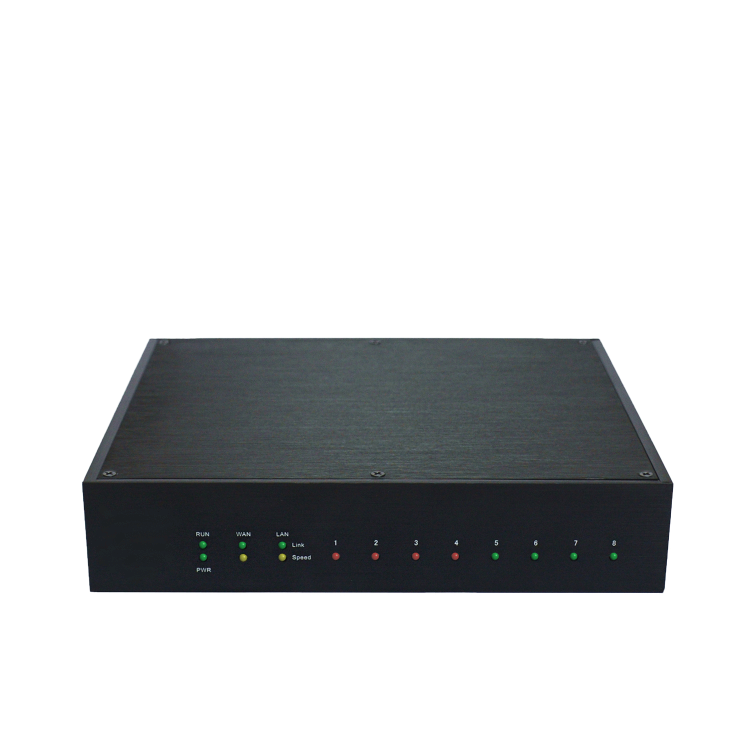

Max 100 is an embedded IP PBX specially designed to bring enterprise-grade Unified Communications and Security protection features to small business in a easy-manage fashion.
It offers up 100 users which offers the flexibility of integration of PSTN lines, GSM Channels and VoIP trunks, and supports a maximum of 30 concurrent calls.
It offers a solution for converged voice, video, data, fax, and mobility applications out of the box without any extra license fees or recurring costs.
Features:
Support 100 users, 30 concurrent calls.
Integrated up to 8 PSTN trunk FXO ports, or 8 analog telephone FXS ports, or 4 GSM ports.
Customizable combination of FXO, FXS and GSM modules.
Deliver enterprise-grade communication features and functionality to SMBs.
Perfect interoperability with a wide range IP Phone.
Strongest-possible security protection using SRTP, TLS, and HTTPS.
Energy Saving, embedded system with low power consumption for your green office.
Flexible dial plan and Manipulation Rules.
Easy to manage via web-based configuration interface.
Physical properties:
Ethernet Interface : 2 RJ45（10/100BASE-TX）
USB Interface : 1 USB2.0
Power Supply : AC100-240V, 50/60Hz, DC 12V/3.3A
Power consumption : 12W
Temperature (operation) : 0~50 ℃
Temperature (storage) : -20~80 ℃
Operation Humidity : 10%-90% No Condensation
Dimension (WxDxH) : 220x197x45mm

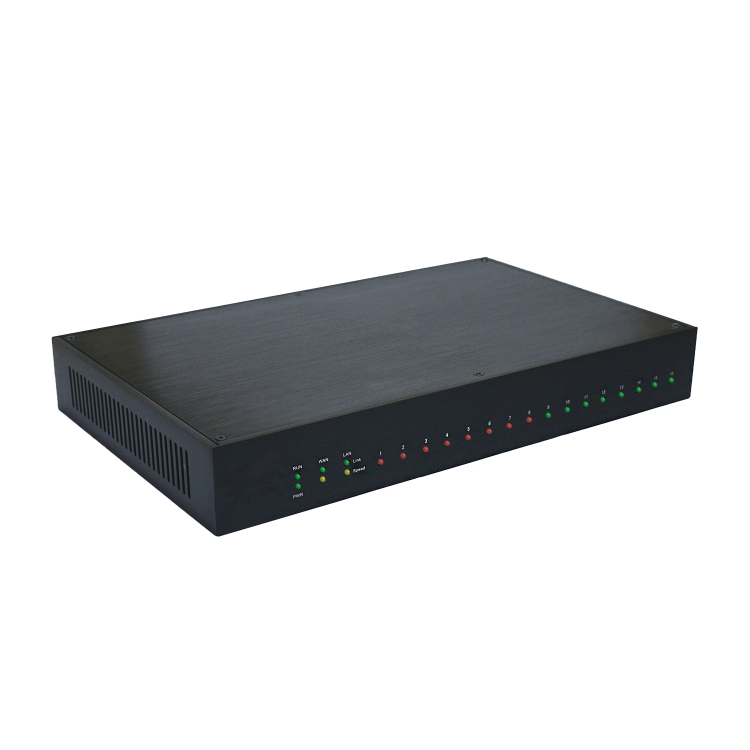

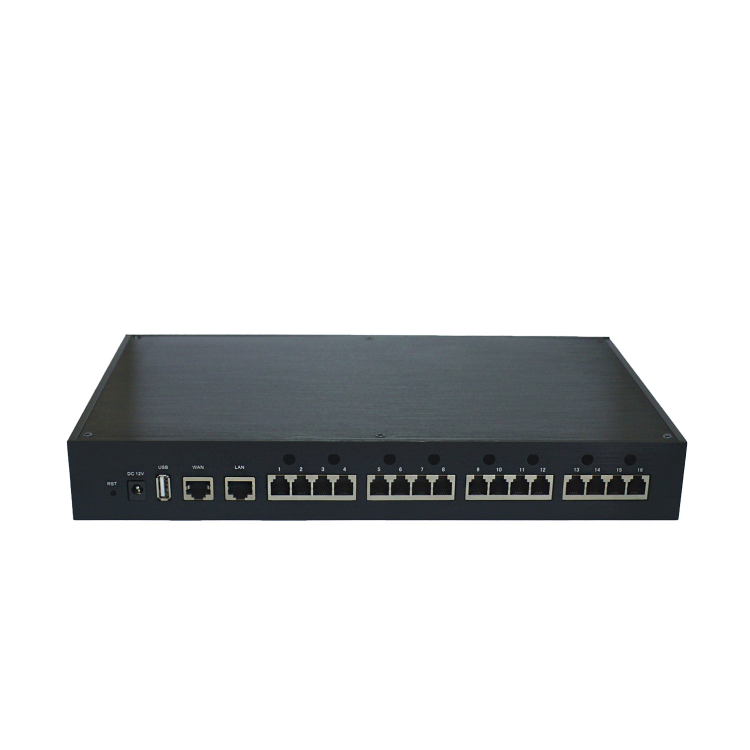

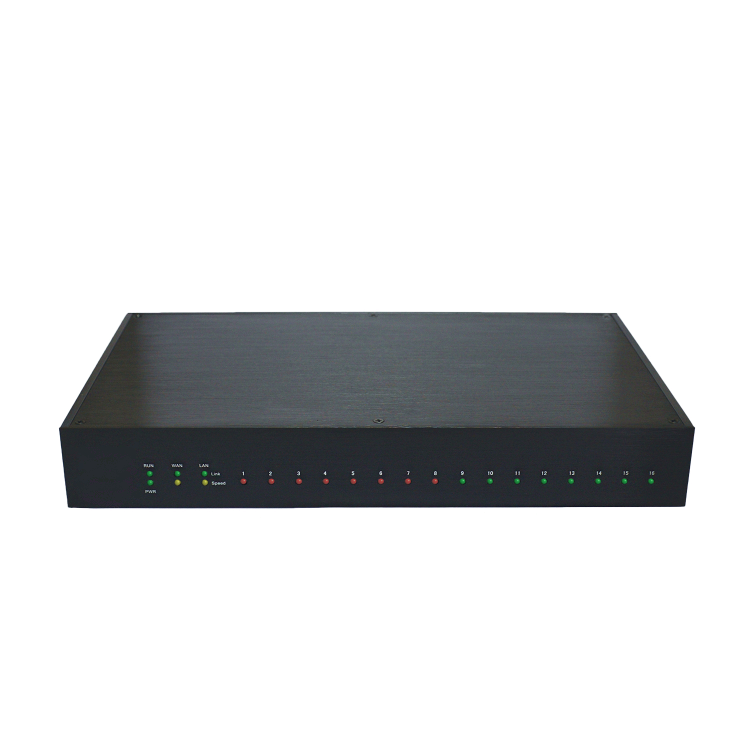

Max 300 is an embedded IP PBX specially designed to bring enterprise-grade Unified Communications and Security protection features to small business in a easy-manage fashion.
It offers up 300 users which offers the flexibility of integration of PSTN lines, GSM Channels and VoIP trunks, and supports a maximum of 50 concurrent calls.
It offers a solution for converged voice, video, data, fax, and mobility applications out of the box without any extra license fees or recurring costs.
Features:
Support 300 users, 50 concurrent calls.
Integrated up to 16 PSTN trunk FXO ports, or 16 analog telephone FXS ports, or 8 GSM ports.
Customizable combination of FXO, FXS and GSM modules.
Deliver enterprise-grade communication features and functionality to SMBs
Perfect interoperability with a wide range IP Phone.
Strongest-possible security protection using SRTP, TLS, and HTTPS.
Energy Saving, embedded system with low power consumption for your green office.
Flexible dial plan and Manipulation Rules.
Easy to manage via web-based configuration interface.
Physical properties:
Ethernet Interface : 2 RJ45（10/100BASE-TX）
USB Interface : 1 USB2.0
Power Supply : AC100-240V, 50/60Hz, DC 12V/3.3A
Power consumption : 25W
Temperature (operation) : 0~50 ℃
Temperature (storage) : -20~80 ℃
Operation Humidity : 10%-90% No Condensation
Dimension (WxDxH) : 323x197x45mm
